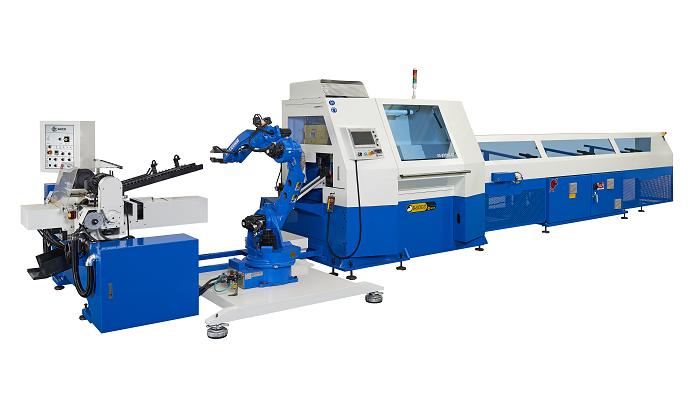

High-Efficiency Dual Tubes Cutting Machine

Single Tube (OD 80mm), Dual Tube (OD 40mm) Cutting Capacity

Engineered with a rigid vertical gantry-style sliding structure, this tube cutting machine ensures extremely stable feed motion, maximizing cutting efficiency. Ideal for both solid bars and dual-tube cutting, it supports round-the-clock production and seamless integration with upstream and downstream processes.

Key Features:

Automatic bundle loader handles workpieces up to 6.5 meters
Compatible with both HSS and Tungsten Carbide saw blades, depending on material
Equipped with automatic sorting of front-end, back-end, and finished parts
Variable-speed cutting extends blade life and improves quality
Servo-driven feeding and infeed system using precision ball screws allows stable cutting, adjustable speeds, and cycle time reduction
High-torque cutting head with gearbox and anti-backlash design ensures smooth engagement, low vibration, and low noise
Dual 180° saw blade damping structure minimizes vibration and heat build-up with coolant circulation—achieving high precision and longer blade life
Temperature-controlled cutting head reduces thermal deformation of saw blades
Floating servo feeding system ensures smooth tube surface and high cutting accuracy
User-friendly touch screen with automatic error detection and diagnostic display for faster troubleshooting
